IDEAL supplies Surlyn skin packaging film for hardware, hand tools, automotive parts, mechanical components, repair kits and other industrial products requiring clear presentation and secure product fixation. Surlyn is used by customers in a variety of applications--from food and cosmetic packaging to consumer and industrial goods--to make life better, healthier and safer for people everywhere.Typically used as a food contact or seal layer in flexible packaging, Surlyn packaging resins are optimized for efficient blown film and extrusion coating. Choose from a wide variety of proven grades, to meet specific packaging needs.
Surlyn skin pack film is a transparent, heat-formable industrial packaging film designed to form closely around products and seal to a compatible skin packaging board. After heating and vacuum forming, the film follows the product profile and holds the item firmly against the backing material.
Compared with standard general-purpose skin films, Surlyn skin packaging film is commonly selected for applications requiring improved clarity, toughness, abrasion resistance and forming performance. It is particularly suitable for irregular products, raised profiles and retail packages where both product protection and visual presentation are important.
IDEAL supplies Surlyn skin packaging film in standard 450 mm and 610 mm widths, with available thicknesses from approximately 100 μm to 350 μm. Film width, thickness, roll weight and packaging method can be customized according to the product, backing board and skin packaging machine.
| Parameter | Available Specification |
|---|---|
| Product Name | Surlyn Skin Packaging Film |
| Film Type | Surlyn-based industrial skin packaging film |
| Appearance | Transparent |
| Standard Width | 450 mm and 610 mm |
| Available Thickness | 100 μm, 120 μm, 150 μm, 180 μm, 200 μm, 250 μm, 300 μm and 350 μm |
| Roll Weight | Approximately 12.5–30 kg/roll |
| Product Profile | Low-profile, medium-profile, high-profile and irregular products |
| Customization | Width, thickness, roll weight, roll length, core and packaging |
| Backing Material | Compatible coated paperboard, corrugated board or designated skin packaging substrate |
| Main Applications | Hardware, tools, automotive parts, industrial components and repair kits |
| Packaging Method | Protective wrapping, carton or pallet packaging |
| Sample Testing | Recommended before bulk production |
Specifications may vary according to film model, thickness, roll configuration and application requirements. Final suitability should be confirmed through packaging trials.
|
Product |
Width |
Thickness |
Weight |
|
SV |
450mm,610mm |
100um,12oum,150um,180um,200um,250um,300um ,350um |
12.5-30kg/roll |
|
SS |
450mm,610mm |
100um,12oum,150um,180um,200um,250um,300um ,350um |
12.5-30kg/roll |
|
S |
450mm,610mm |
100um,12oum,150um,180um,200um,250um,300um ,350um |
12.5-30kg/roll |
|
Other Width and Thickness can be customized |
|||
Surlyn skin packaging film is used when ordinary industrial packaging film cannot provide the required balance between product visibility, forming performance and package durability.
The transparent surface allows the packaged product to remain clearly visible. This is particularly important for tools, hardware sets, replacement components and retail accessories that customers need to inspect before purchase.
Clear packaging also helps warehouse personnel confirm product appearance, quantity and completeness without opening the package.
Surlyn skin pack film can form around raised surfaces, curved components and irregular product profiles when used under suitable heating and vacuum conditions.
This makes it suitable for products that cannot be fixed efficiently in conventional bags or flat pouches.
Industrial products may pass through manufacturing, storage, export transportation, distribution and retail display before reaching the end user.
Surlyn skin packaging film is selected for applications requiring improved resistance to handling stress, abrasion and minor impact. The actual performance depends on the film grade, thickness, product shape and packaging structure.
The vacuum forming process draws the film closely around the product and toward the backing board. This helps reduce product movement and keeps individual components in their intended positions.
Secure fixation is particularly useful for repair kits, tool sets, maintenance components and packages containing several small parts.
Surlyn film is suitable for retail packages requiring a clean, smooth and professional appearance. It can be combined with printed skin packaging cards to display branding, specifications, instructions and barcodes.

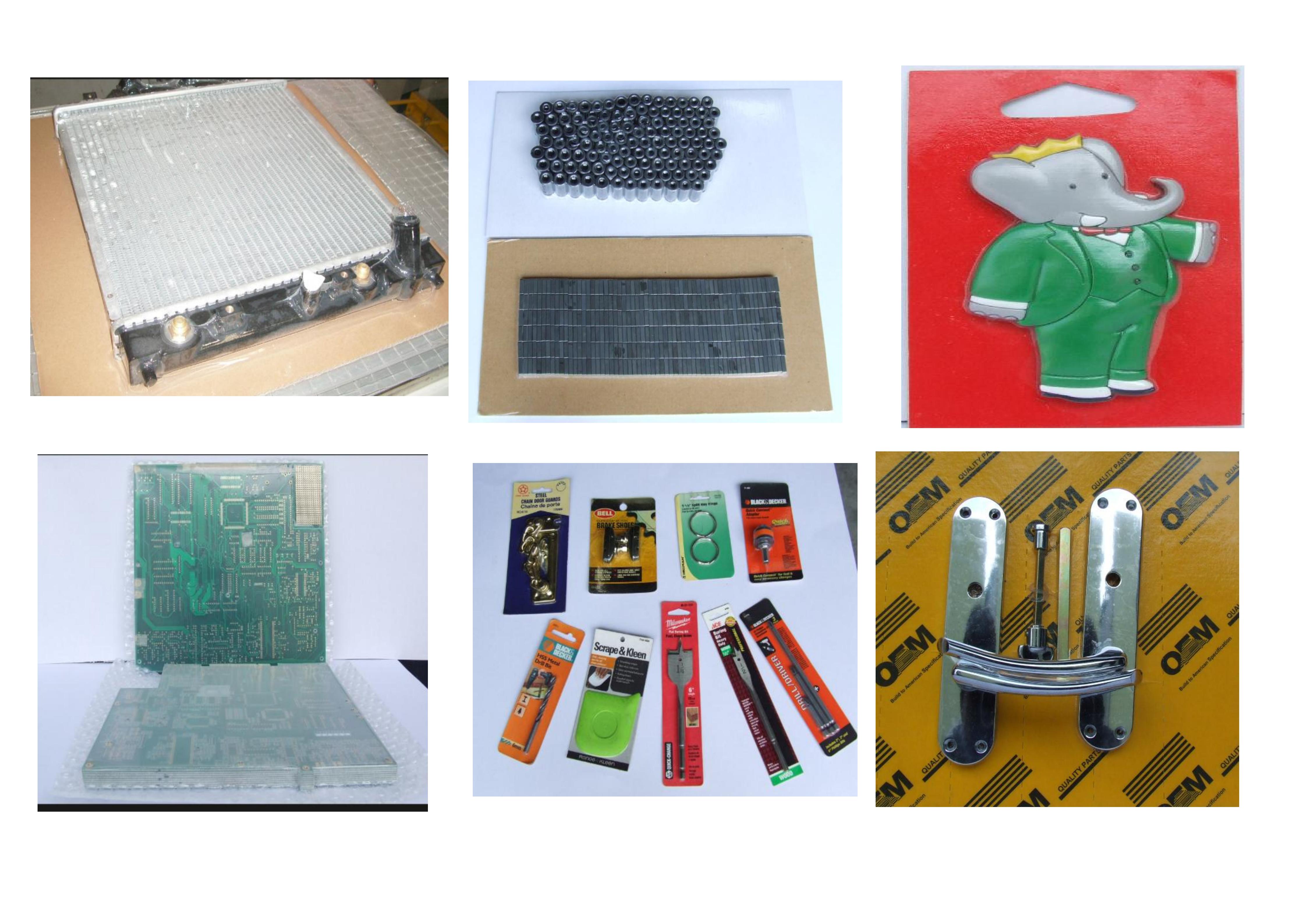

Surlyn skin packaging film can be used for:
The transparent film helps customers identify the product, while the skin packaging structure keeps loose components securely positioned.
For standard industrial hardware applications, customers can also compare our more economical PE skin pack film .

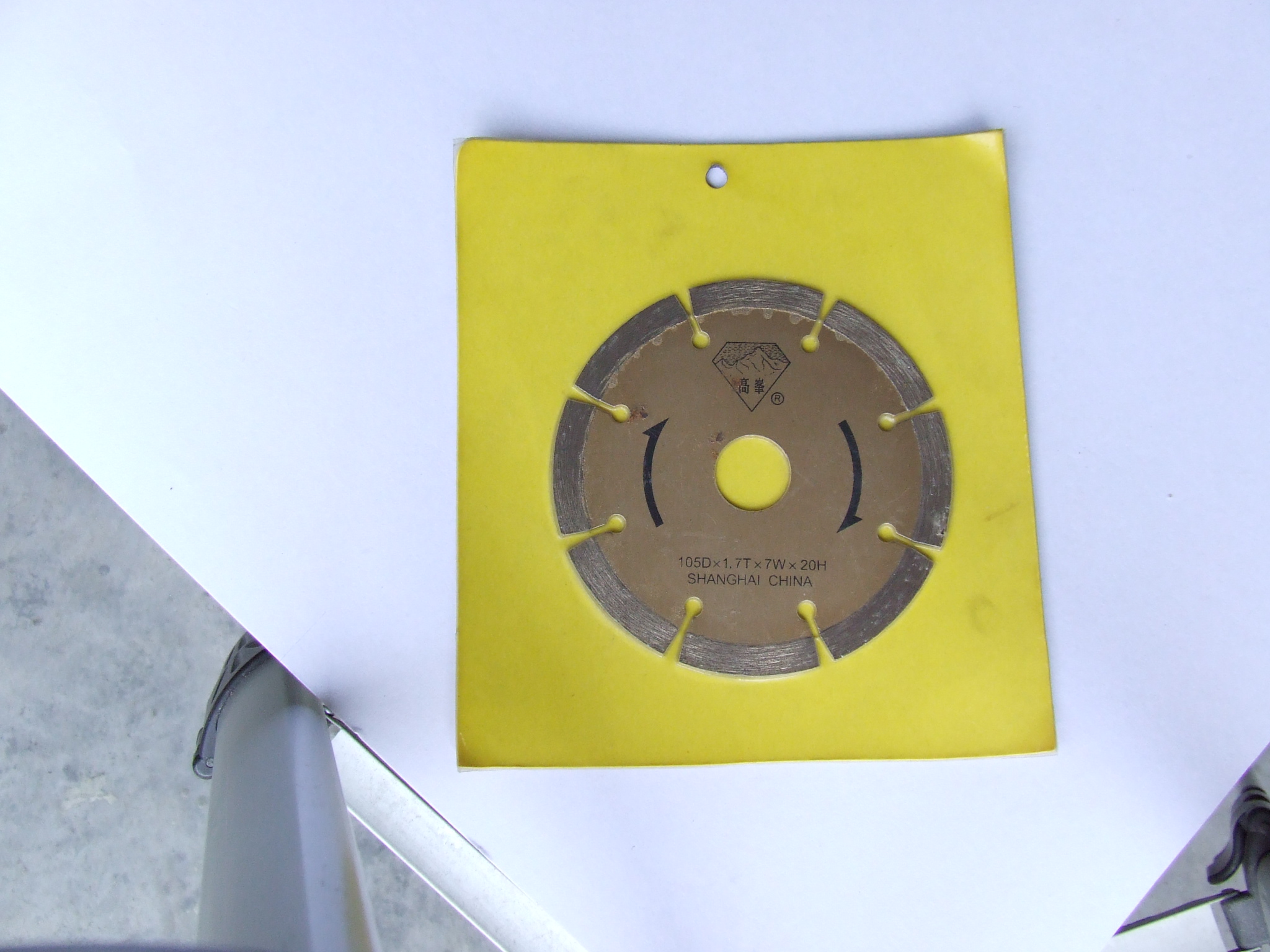

Tools often have irregular shapes, raised handles and metal working surfaces. Surlyn skin pack film can be considered for:
Film thickness should be selected according to tool height, weight and edge condition. Sharp cutting surfaces may require additional thickness, protective covers or adjusted product orientation.
Surlyn skin packaging film is also used for automotive aftermarket components and industrial replacement parts, including:
For heavy or tall components, a thicker film and reinforced backing board may be required. Customers packaging large metal parts can review our heavy product skin pack film .

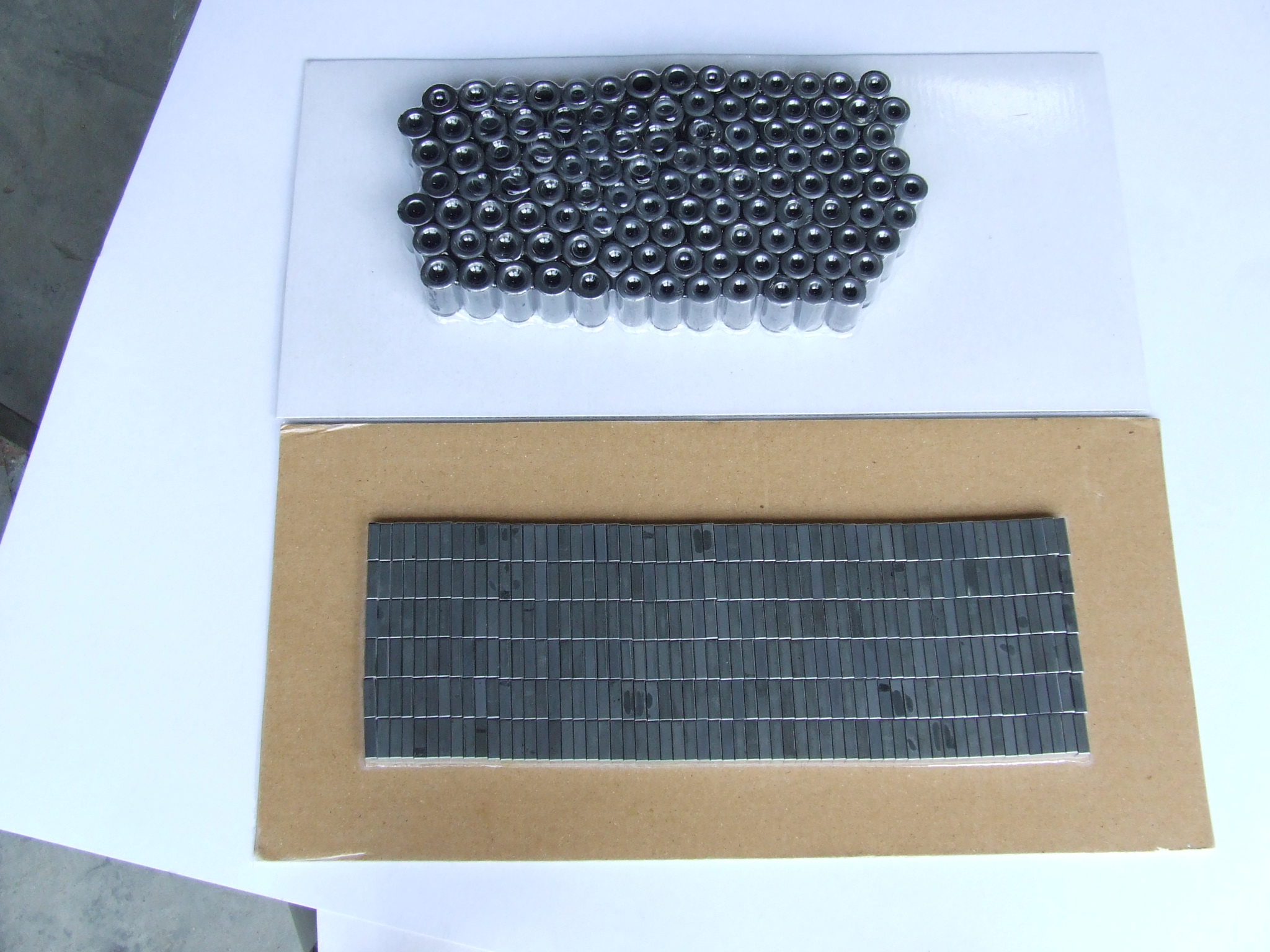

Packages containing multiple small parts need to keep each component visible and in the correct position.
Surlyn skin packaging film can help package:
The transparent package allows users to check whether all required parts are included before opening it.

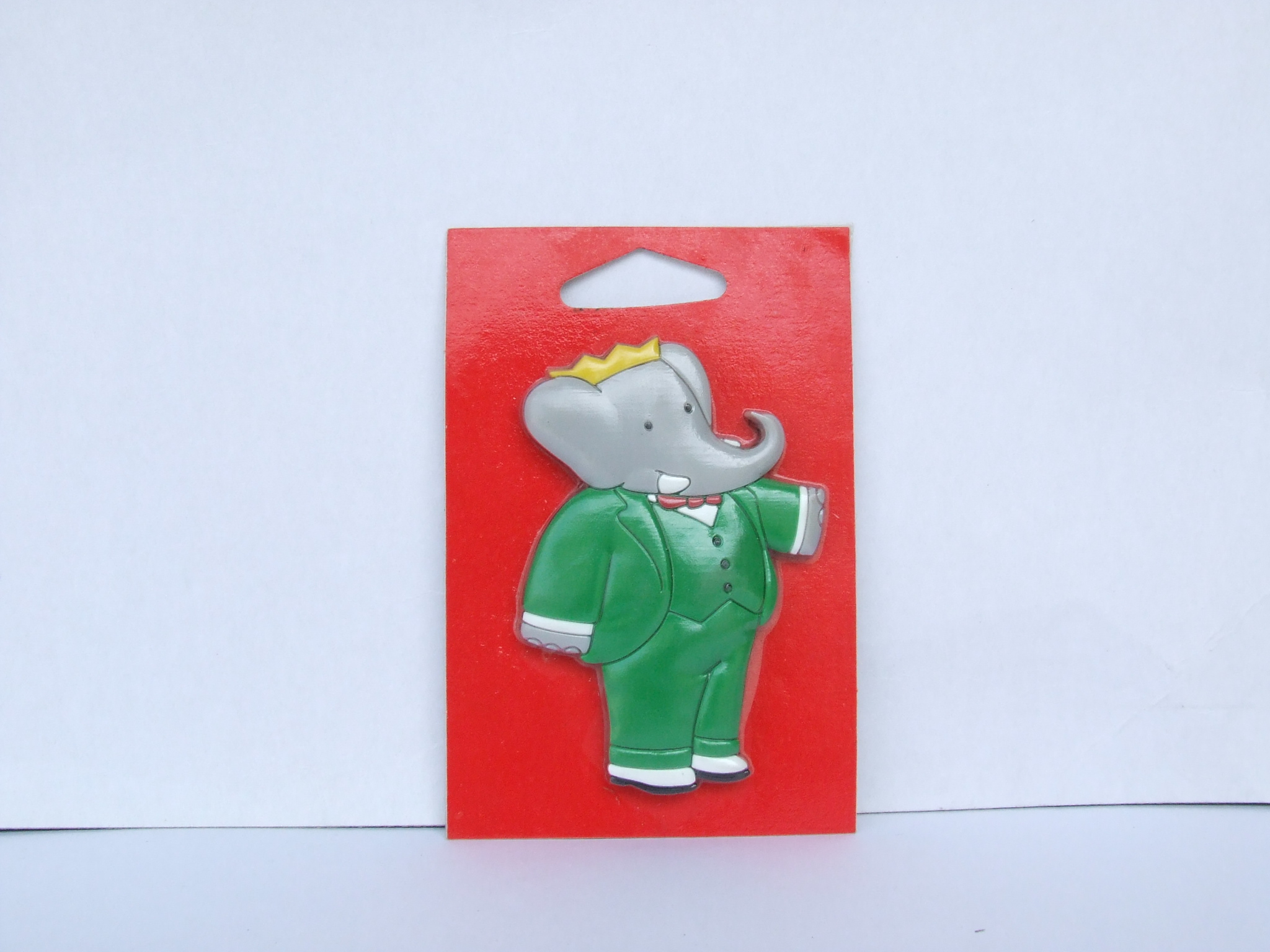

Surlyn film can be used with printed skin boards for hanging retail packages. Product information, operating instructions, branding and part numbers can be printed on the backing board.
This packaging format is suitable for distributors, hardware retailers, automotive aftermarket suppliers and industrial product brands that require both product display and physical protection.
IDEAL supplies SV, SS and S Surlyn skin packaging film models. Model selection should not be based only on thickness or price.
The appropriate model depends on:
Surlyn and PE skin packaging films can both be used for industrial packaging, but they are generally selected for different product and presentation requirements.
| Comparison Factor | Surlyn Skin Packaging Film | PE Skin Pack Film |
| Main Positioning | Higher-clarity and demanding industrial packaging | Cost-effective general industrial packaging |
| Product Visibility | Suitable for premium retail presentation | Suitable for standard product display |
| Forming Requirement | Suitable for irregular and raised product profiles | Suitable for common low- and medium-profile products |
| Toughness | Selected for applications requiring improved durability | Suitable for general-purpose applications |
| Abrasion Resistance | Appropriate for more demanding product surfaces | General industrial performance |
| Typical Products | Tools, irregular components and premium hardware | General hardware, plastic parts and lightweight products |
| Cost Consideration | Usually selected for performance and presentation | Usually selected for economical volume packaging |
The comparison above is a general guide. Actual performance depends on the material structure, film thickness, machine settings and product profile.
Customers who prioritize packaging cost for standard hardware can view our PE skin packaging film. Customers requiring stronger support for heavy products should consider heavy-duty skin pack film.
The thickest film is not automatically the most suitable option.
An excessively thick Surlyn film may require more heating and may not form efficiently around small or low-profile products. A film that is too thin may stretch excessively, puncture around edges or provide insufficient holding strength.
| Selection Factor | Why It Matters | Recommended Consideration |
| Product Height | Higher products require greater film elongation. | Consider thicker or more formable Surlyn skin packaging film. |
| Product Weight | Heavy products place additional stress on the film and board. | Use heavier-gauge film and reinforced backing materials. |
| Product Shape | Deep recesses and irregular profiles increase forming difficulty. | Select film with suitable elongation and forming performance. |
| Sharp Edges | Corners and cutting surfaces may puncture the film. | Increase thickness or use protective covers. |
| Retail Presentation | Retail products require clarity and smooth forming. | Select film with consistent transparency and surface quality. |
| Transportation Conditions | Export shipping and repeated handling increase packaging stress. | Consider stronger fixation and improved puncture resistance. |
| Machine Configuration | Heating and vacuum conditions affect forming results. | Confirm compatibility before volume ordering. |
For products with sharp corners, protruding parts or rough surfaces, actual sample testing is strongly recommended.
IDEAL supplies Surlyn skin packaging film for hardware, tools, automotive parts, mechanical components and industrial retail packaging.
Send us your product dimensions, weight, photographs, backing board information, machine model and required quantity. Our team will evaluate the application and recommend a suitable film model, width and thickness for sample testing and volume production.
Contact IDEAL to request Surlyn film specifications, samples and a customized quotation.
