PE skin pack film is a transparent, heat-formable packaging film developed for securing hardware, tools, plastic components, magnetic products and other industrial parts onto a compatible coated backing board. During the skin packaging process, the PE film is softened under controlled heating and drawn closely around the product by vacuum. The film follows the product profile and adheres to the coated area around it, helping hold the item firmly in position while maintaining clear product visibility. IDEAL supplies PE skin packaging film in standard widths of 450mm and 610mm, with thickness options ranging from approximately 100μm to 350μm. Film width, thickness, roll weight and other roll specifications can be customized according to the product dimensions, packaging machine, backing board and production requirements.
PE skin packaging film is commonly selected when industrial products require secure positioning, transparent presentation and efficient packaging without using a conventional bag, blister or rigid plastic shell.
The transparent surface allows customers, warehouse personnel and quality inspectors to view the packed product without opening the package.
Clear packaging is particularly useful for:
Under suitable heating and vacuum conditions, PE skin pack film stretches around the raised surfaces and contours of a product.
This close-forming structure helps reduce movement inside the package and keeps individual components in the intended position. It is useful for products that cannot be secured efficiently in loose bags or flat pouches.
Polyethylene skin packaging film offers flexibility suitable for many routine industrial packaging applications. The material can conform to different product profiles when the appropriate thickness, heating condition and backing board are used.
PE skin packaging film helps protect packed products from dust, moisture exposure and direct contact during storage, handling and transportation.
The final level of protection depends on the complete packaging structure, including:
The film helps hold products against the backing board during warehouse handling, distribution and retail display. Selecting the correct film thickness can reduce packaging failure caused by stretching, vibration or repeated movement.
Products with sharp edges, heavy weight or tall profiles should be evaluated carefully before bulk production.
PE skin pack film is designed for heat forming under controlled packaging conditions. Correct heating time and temperature help the film soften evenly and form around the product without unnecessary wrinkles, weak areas or excessive stretching.
Actual machine settings must be determined through testing because suitable parameters vary according to film thickness, machine design, product height and production speed.

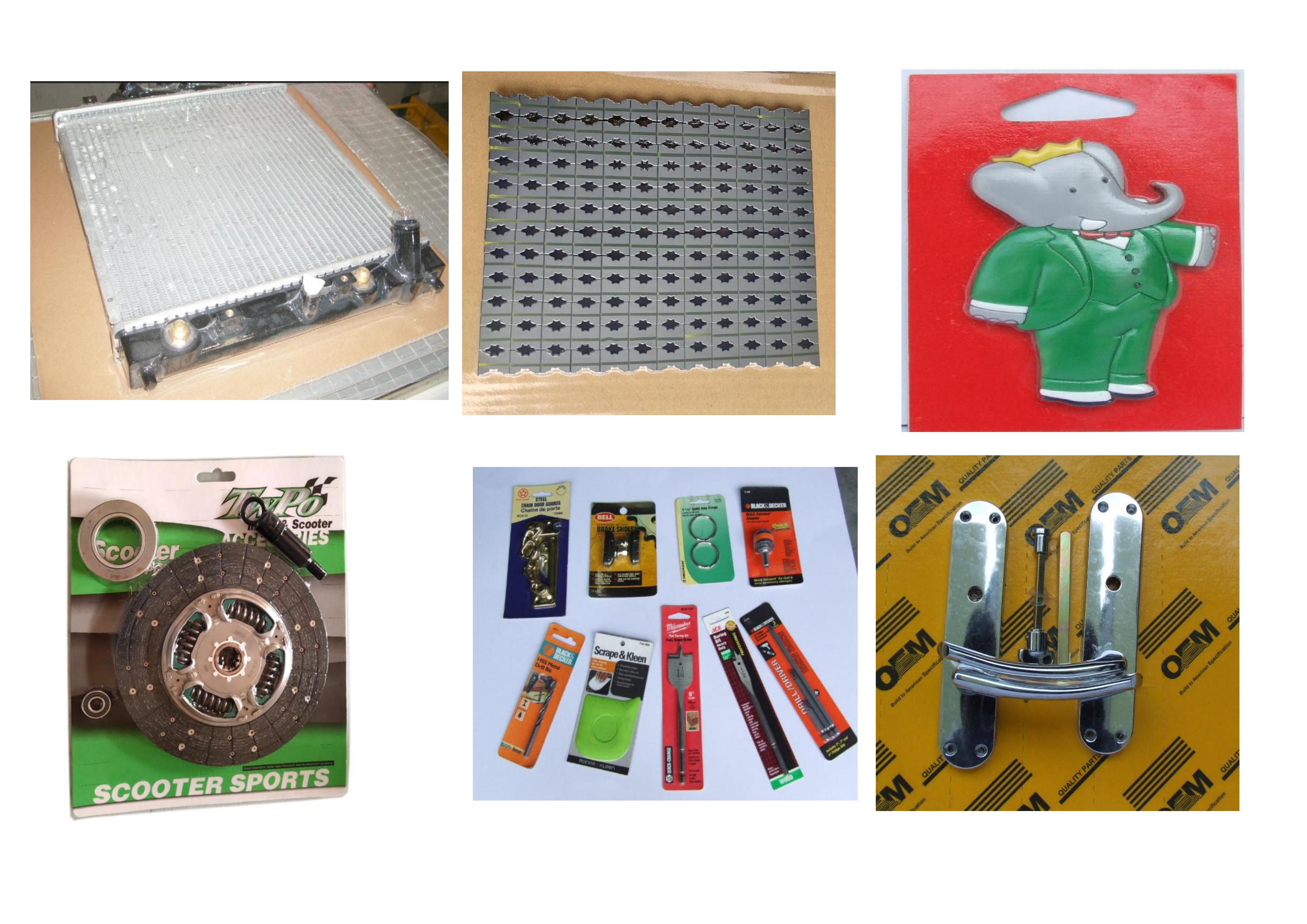

PE skin pack film for hardware and industrial parts can be used for a wide range of products that require transparent display and secure fixation.
Common applications include:
Skin pack film for hardware allows several components to be arranged on one backing board, helping customers identify the product type, quantity and size before opening the package.
PE skin packaging film can be evaluated for:
For premium tools, complex contours or products requiring higher toughness and display clarity, customers can also compare our Surlyn skin packaging film.

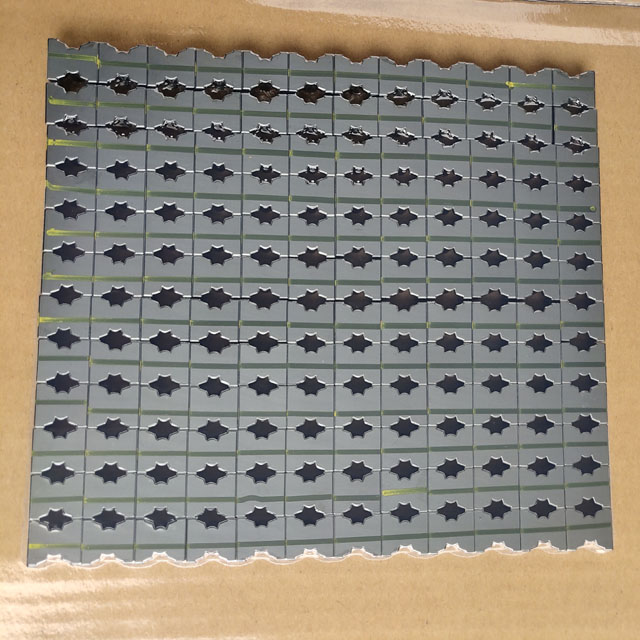

The flexibility of PE skin film makes it suitable for selected plastic components, magnetic parts and molded accessories.
Typical products include:
PE skin packaging film can also be considered for lightweight automotive aftermarket products and machinery replacement components, such as:
The product weight, height, sharp edges and shipping conditions should be reviewed before selecting a film thickness.
PE skin pack film can combine several related products on one printed backing board. This makes it suitable for retail sets, promotional kits and branded accessory packages that need clear display and organized presentation.
A complete industrial skin packaging system normally consists of three main parts:
During operation, the film is heated until it reaches the required forming condition. Vacuum draws the film toward the backing board and around the product. The film then adheres to the coated surface surrounding the product.
The finished packaging quality is not determined by the PE film alone. Several factors work together:
| Parameter | Available Specification |
| Product Name | PE Skin Pack Film |
| Material Type | Polyethylene-based skin packaging film |
| Film Appearance | Transparent |
| Standard Width | 450mm and 610mm |
| Thickness Options | Approximately 100μm, 120μm, 150μm, 180μm, 200μm, 250μm, 300μm and 350μm |
| Roll Weight | Approximately 12.5–30kg per roll |
| Custom Width | Available according to machine working width |
| Custom Thickness | Available according to product profile and packaging requirements |
| Core Specification | Confirm according to the existing machine and unwinding system |
| Suitable Product Profile | Low-profile and medium-profile industrial products; final suitability depends on shape, height and weight |
| Compatible Backing | Coated paperboard, coated corrugated board or another compatible industrial backing material |
| Main Applications | Hardware, tools, plastic parts, magnetic products, repair kits and small industrial components |
| Documentation | RoHS and SGS documentation available for applicable product specifications |
| Sample Testing | Recommended before volume production |
The specifications above are standard references. Final PE skin pack film dimensions, tolerances, roll configuration and processing conditions should be confirmed according to the selected film grade and order requirements.
IDEAL-SE Film
|
Product |
Width |
Thickness |
Weight |
|
SE |
450mm,610mm |
100um,12oum,150um,180um,200um,250um,300um ,350um |
12.5-30kg/roll |
|
Other Width and Thickness can be customized |
|||
1. High transparency
2. High elongation to conform to the contours of product intimately
3. Excellent impact strength to protect from crude transport and handling.
4. Lower processing temperature to save energy and enhance efficiency.
5. No harmful fumes emit while packaging
6. Resistance to oil and grease
7. Products of all sizes and shapes can be packaged
8. Comply with RoHS and have SGS certification
Choosing a PE skin packaging film only by price or the thickness used for another product may lead to poor forming, film breakage or unnecessary material consumption.
The following factors should be reviewed during film selection.
| Selection Factor | Why It Matters | Recommended Consideration |
|---|---|---|
| Product Height | Higher products require the film to stretch further during forming. | Evaluate a thicker or more formable film for raised product profiles. |
| Product Weight | Heavier products place more stress on the film and backing board. | Use sufficient film thickness and confirm board strength. |
| Product Shape | Deep contours and irregular surfaces can cause uneven stretching. | Test whether the film reaches recessed areas without weak spots. |
| Sharp Edges | Corners, cutting surfaces and protrusions may puncture the film. | Increase thickness, adjust orientation or add protective caps. |
| Product Size | Large products require suitable film width and an adequate sealing area. | Confirm the usable machine width and board dimensions. |
| Retail Display | Display packaging requires consistent transparency and a smooth finish. | Select film with stable thickness and appropriate forming conditions. |
| Transportation | Vibration and repeated handling increase packaging stress. | Evaluate impact, fixation and puncture resistance through testing. |
| Production Speed | Short heating cycles may not soften thicker film sufficiently. | Match thickness to machine heating capacity and line speed. |
| Backing Board | Incompatible coatings can cause poor adhesion. | Test the actual board and film combination before bulk ordering. |
IDEAL provides standard and custom PE skin pack film rolls for manufacturers, packaging converters, contract packers, importers and distributors.
| Customization Item | Available Option |
|---|---|
| Film Width | 450mm, 610mm or customized according to machine width |
| Film Thickness | Selected according to product shape, height, weight and handling requirements |
| Roll Weight | Approximately 12.5–30kg or confirmed according to specification |
| Roll Length | Determined according to film thickness and roll configuration |
| Core Size | Confirmed according to the machine unwinding system |
| Roll Diameter | Adjusted according to machine and handling limitations |
| Product Label | Standard label, customer label or neutral identification |
| Packaging Method | Protective wrapping, carton, pallet or customized export packaging |
| Documentation | Confirm according to film grade and destination-market requirements |
| Sample Roll | Available for compatibility and forming evaluation |
Custom specifications should be confirmed through drawings, samples, machine information or existing film data.
IDEAL has focused on vacuum skin packaging materials and related packaging solutions since 1999.
Our support for PE skin packaging film projects includes:
Rather than recommending the same PE skin pack film for every product, our team evaluates the product height, weight, shape, backing board and machine configuration before confirming the film specification.
